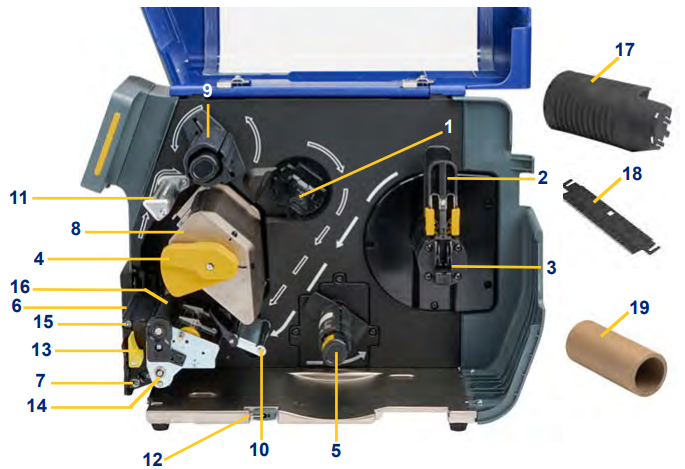

The following image displays all of the internal components of the i7500 peel model. Purchase the model on BradyID.
|
1. Ribbon Supply Spindle
| 11. Ribbon Anti-Wrinkle Bar |
| 2. Label Roll Centering Flange | 12. T-20 Wrench |
|
3. Label Roll Hanger
| 13. Peel Door (Peel Only) |
| 4. Locking Lever for Printhead | 14. Lower Pinch Assist Roller (Peel Only) |
| 5. Internal Rewind Spindle (Peel Only) | 15. Liner Peel-Back Roller (Peel Only) |
| 6. Smooth Edge Peel Bar Plate (Peel Only) | 16. Platen Roller |
| 7. Lower Pinch Roller (Peel Only) | 17. Curved Rewind Guide (Peel Only) |
| 8. Printhead | 18. Peel Model Serrated Tear Plate |
|
9. Ribbon Take-Up Spindle
| 19. 1.5" Core for Internal Rewind (Peel Only) |
|
10. Label Supply Tension Dancer Bar
| |
