Article Number000010898
TitleWraptor / A6500 - Wrap Counter
Body
The cumulative number of cycles made by the Wraptor / A6500 can be viewed using these touch screen menu options.

A6500 Model

Note: The cycle count cannot be edited or reset. This value is used to determine when to perform maintenance on the printer. Each wrap may contain multiple cycles if the printer is configured for multiple cycles per wrap in Settings > Print Adjustments > Wrap Count.

  1. Select Settings.

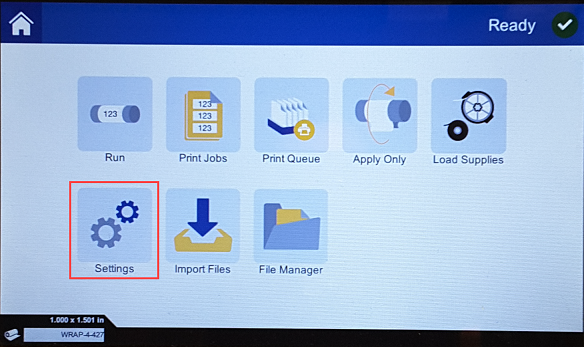

Main Menu_Settings

  1. Select Print Adjustments.

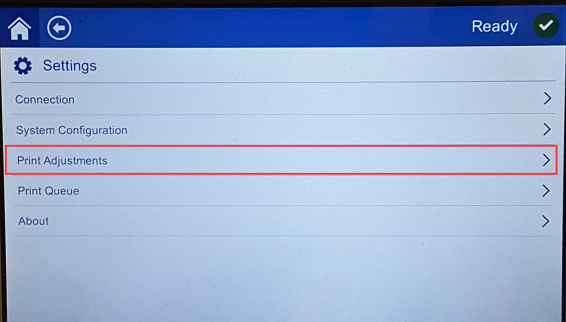

Settings_Third Options - Print Adjustments

  1. Cycles displays.

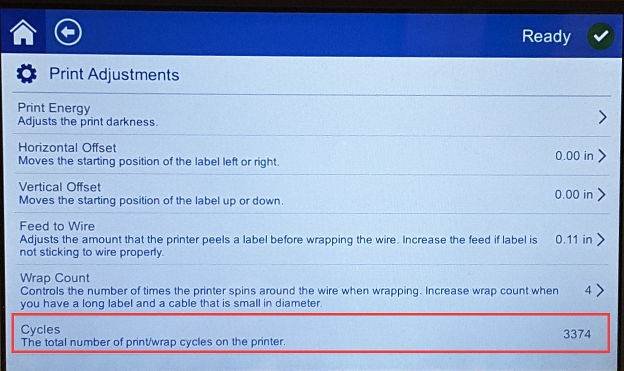

Cycles

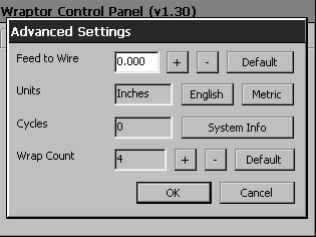

Legacy Wraptor Model

  1. Select File.
  2. Select Config.
  3. Select Advanced.


This will show you under CYCLES the total wraps you have done to date.

Record Cycles for A Given Period

In FILE > OPEN, there is a COUNT option. This will track the # of wraps you do on the machine until you choose the RESET option.

Note: To track daily activity, be sure to go into this option before your work day starts and hit the RESET button.


Related information
URL NameWrap-Counter-on-Wraptor
