Article Number000009862
TitleExpress Labels Mobile - How to add a Barcode, Text, Symbol, and Image on a Label
Body

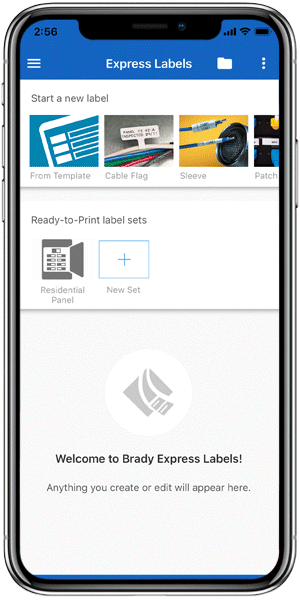

Express Labels Example gif

How to add information to a label in Express Labels


Add Barcodes to Labels with Brady Express Labels




  1. Open the Express Labels App and connect your printer.



  1. Select New Label under Start a new label.

Barcodes can be added on the following label types: New Label, Flag, Slide, Tube and Vial.

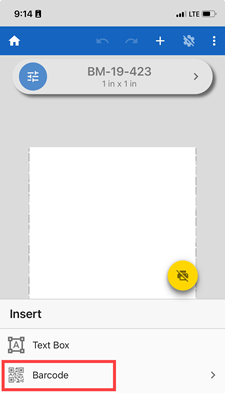

  1. Insert options automatically display. Select Barcode.

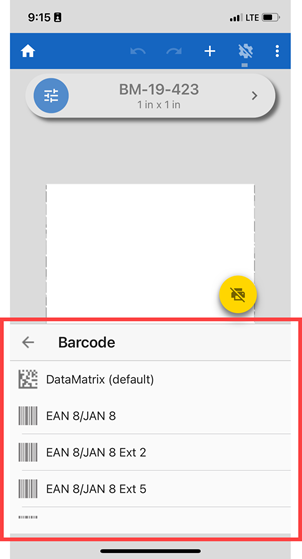

  1. Select the Barcode type. To view more barcode types, scroll through the list.

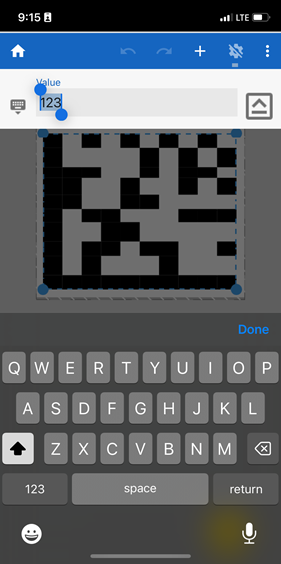

  1. Enter the Value for the barcode. Once all of the information is entered, select the gray area below the barcode to exit out of the textbox.

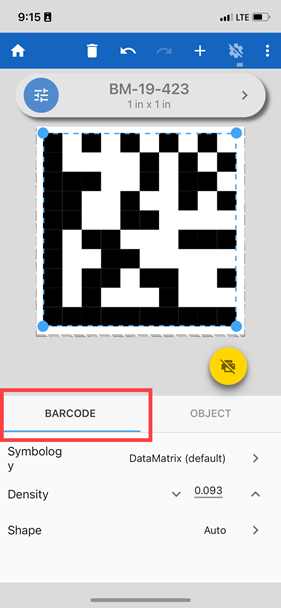

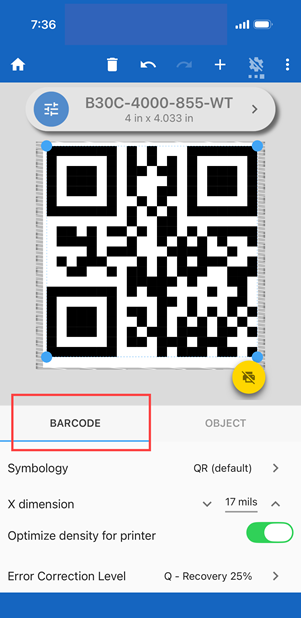

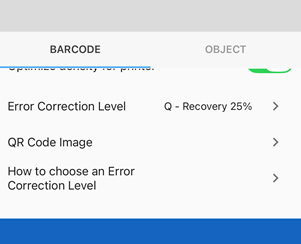

  1. Select the arrows to change the specific settings for the barcode including the Symbology, X dimension (Density), Error Correction Level, Check Digit, and Human Readable Text.

Note: Each barcode type may display different settings.

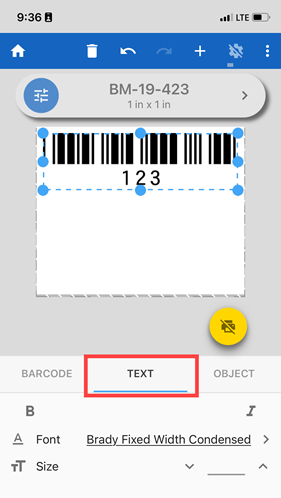

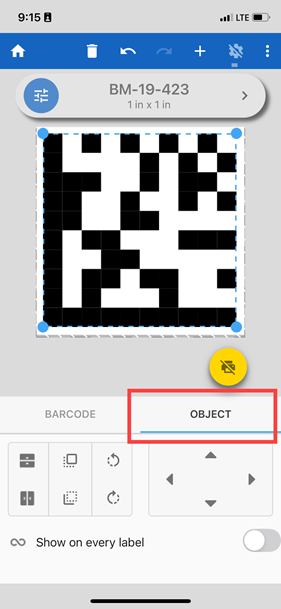

  1. If applicable, select Text to change the font and Object to center or rotate the barcode.
Note: Text will only appear for barcodes that can include text.





Add a Text Box

  1. Open the Express Labels App and connect your printer.

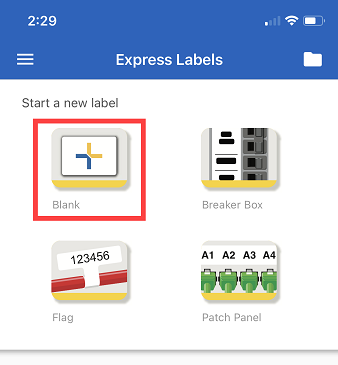

  1. Select Blank under Start a new label.

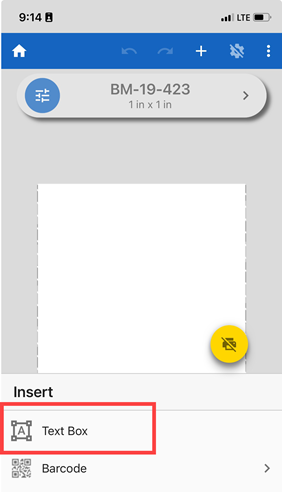

  1. Select Text Box.


  1. Enter the information you want on the label in Value.

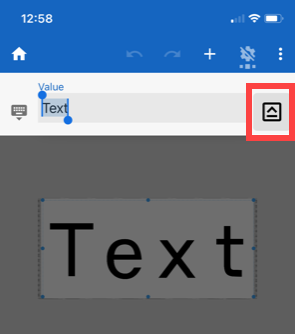

Press the arrow next to Value to set the text to caps lock before you enter your text.
Caps lock.png

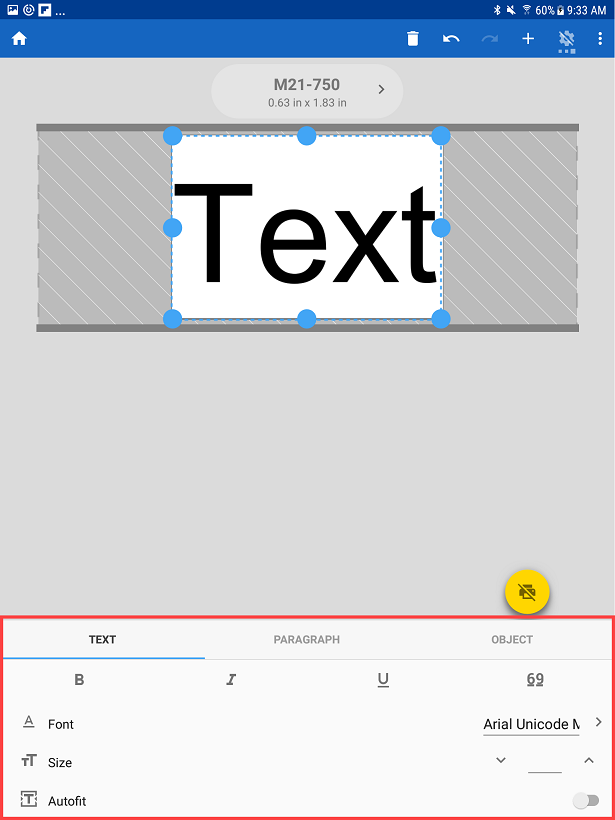

  1. Select outside of the textbox. Other options for the label appear including Text properties, Paragraph settings and Object.

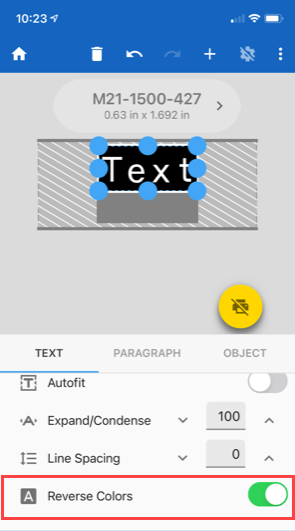

Create a label with inverse colors by selecting to turn on Reverse Colors.
Reverse colors.png


Add a Symbol

  1. Open the Express Labels App and connect your printer.

  1. Select Blank under Start a new label

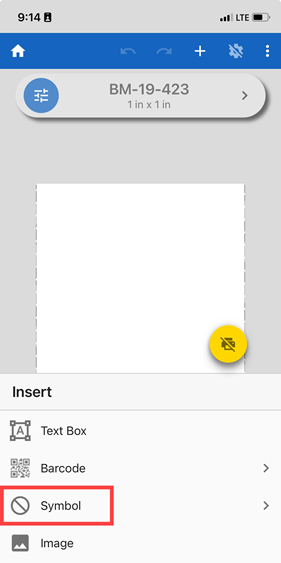

  1. Select Symbol.

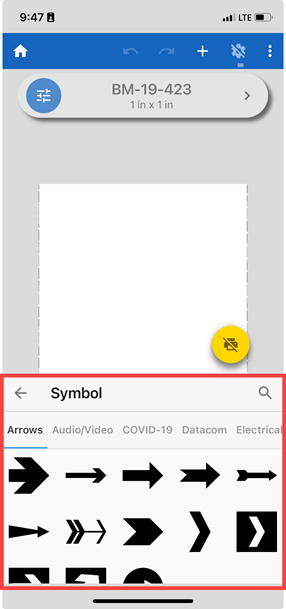

  1. Scroll through the list to select available symbols or select the magnifying glass to enter in search criteria.


Add an Image to a Label

  1. Select Blank or the desired label type.

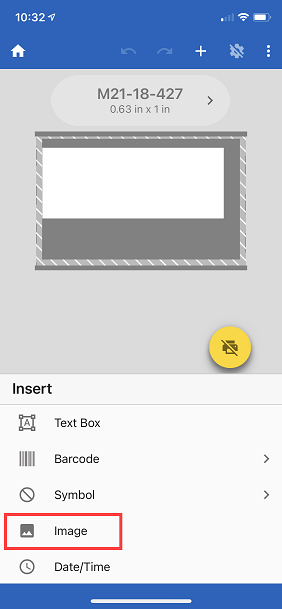

  1. Select Image.

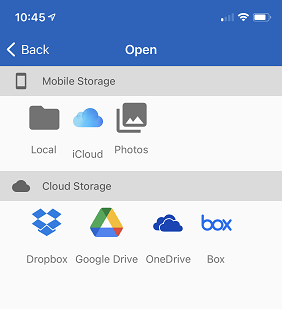

  1. Select the type of storage where the image is saved.
Image file

  1. Select the image.

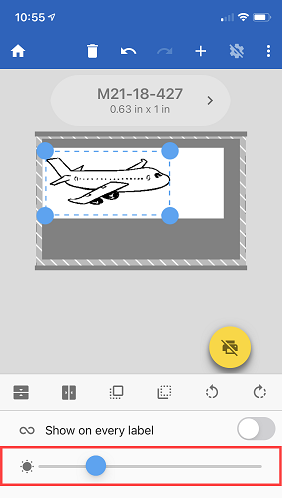

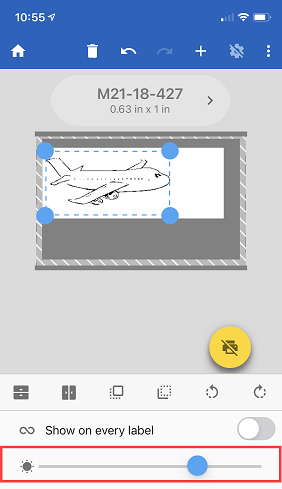

  1. Adjust the brightness, as needed.

Image brightness lower      Image brightness_higher
